The MT ZOOM Shimano E-thru style rear boost thru axle is simple, light, strong and excellent value.  It is the 12mm x 148mm rear wheel axle standard.

Thread pitch 1.5mm. Length from inner washer to end of thru axle: 178.5mm.

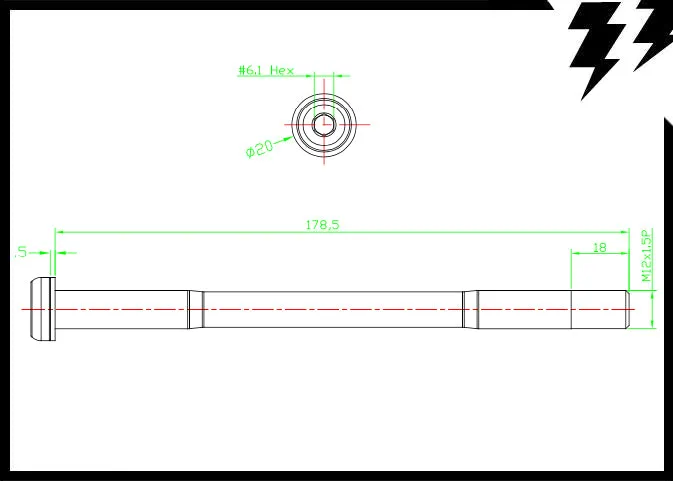

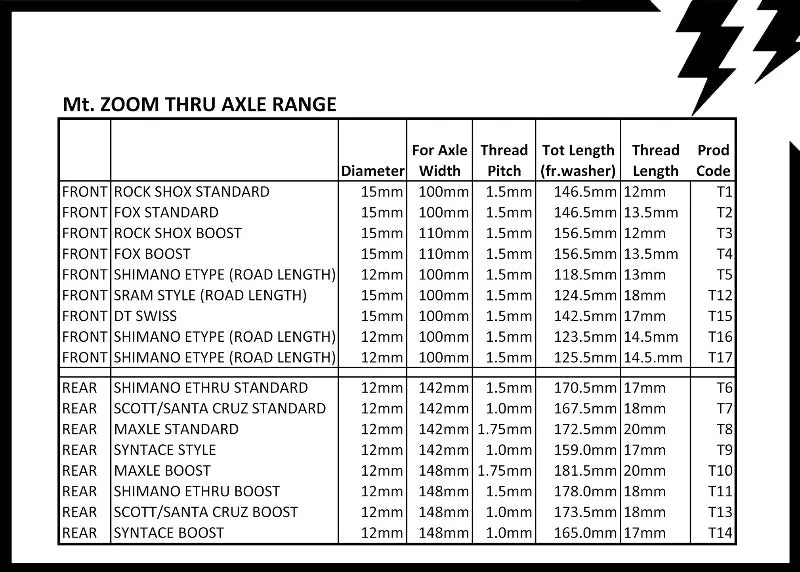

Note some boost frames are designed to still use the standard length axle.  If you are replacing an axle on a boost frame it is worth measuring the length to see whether you need a boost length axle or a standard length one. Cross reference with the picture on here which shows the dimensions of all our axles.

At only 41g – drop some weight from your wheels.

2-year warranty.

[split]

Key technical measurements:
Length from inner washer to end of thru axle: 178.5mm
Thread pitch 1.5mm
Washer width: 1.5mm
Thread area length: 18mm
Inner axle maximum width: 12mm
Product code: T11

[split]

The 1.5mm washer helps protect the paint on your frame/for drop out - its use is optional, removing it gives 1.5mm extra length to the axle.

Uses 6mm hex allen key for smooth secure opening/closing (Max recommended torque 10NM).
